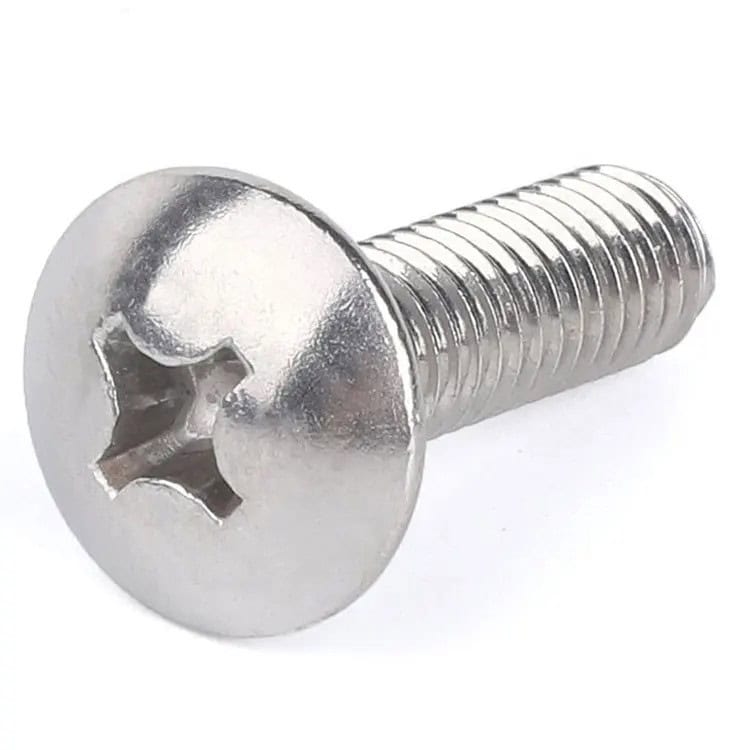

(inch) #0 #1 #2 #3 #4 #5 #6 #8 #10 #12 1/4 5/16 3/8 7/16 1/2 9/16 5/8 3/4 P 80 64|72 56|64 48|56 40|48 40|44 32|40|48 32|36 24|32 24|28|32 20|28|32 18|24|32 16|24|32 14|20|28 13|20|28 12|18|24 11|18|24 10|16|20 dk max 0.131 0.164 0.194 0.226 0.27 0.289 0.321 0.384 0.448 0.511 0.573 0.698 0.823 0.948 1.073 1.198 1.323 1.573 dk min 0.119 0.149 0.18 0.211 0.241 0.272 0.303 0.364 0.425 0.487 0.546 0.666 0.787 0.907 1.028 1.149 1.269 1.511 k max 0.037 0.045 0.053 0.061 0.069 0.078 0.086 0.102 0.118 0.134 0.15 0.183 0.215 0.248 0.28 0.312 0.345 0.41 k min 0.029 0.037 0.044 0.051 0.059 0.066 0.074 0.088 0.103 0.118 0.133 0.162 0.191 0.221 0.25 0.279 0.309 0.368 M 0.056 0.064 0.097 0.103 0.105 0.121 0.151 0.166 0.181 0.241 0.256 0.345 0.376 0.407 0.437 0.439 0.547 0.608 No. 0 0 0 1 1 1 1 1 2 2 3 3 4 4 4 4 5 5 t max 0.03 0.038 0.052 0.059 0.062 0.078 0.073 0.088 0.104 0.111 0.126 0.173 0.206 0.237 0.268 0.282 0.289 0.351 t min 0.012 0.02 0.034 0.042 0.044 0.06 0.048 0.063 0.079 0.086 0.101 0.148 0.182 0.212 0.243 0.258 0.256 0.319 This summary highlights the key features of Stainless Steel Machine Mushroom Truss Head Phillips Screws, specifically designed for distributors: Product Type: Truss Head Phillips Screws Material: Stainless Steel, ensuring durability and corrosion resistance Head Design: Mushroom-shaped truss head provides a larger surface area for better holding power and aesthetic appeal Drive Type: Phillips drive for easy and secure installation Size Range: Available in various sizes (from #0 to #12 and fractional sizes like 1/4 inch to 3/4 inch), catering to diverse applications Dimensions: Detailed specifications include outer diameters, maximum and minimum thicknesses, and socket dimensions for precise fit Performance Metrics: Includes maximum and minimum values for parameters such as dk (diameter), k (constant), M (mass), No. (number per package), and t (thickness), aiding in quality assessment Applications: Ideal for various construction and manufacturing projects requiring reliable fastening solutions These features make the Stainless Steel Machine Mushroom Truss Head Phillips Screws a valuable addition to any distributor’s inventory, offering versatility and strength for their customers’ needs.
